WiSight® 2.0 technology digitally locks the camera to the monitor and blocks all outside signals. This eliminates interference and noise typical of analog wireless systems and delivers a sharp, vivid picture of the vehicle’s surroundings to the monitor.

VCAHD142RWT and VCAHD142LWT side-body cameras.

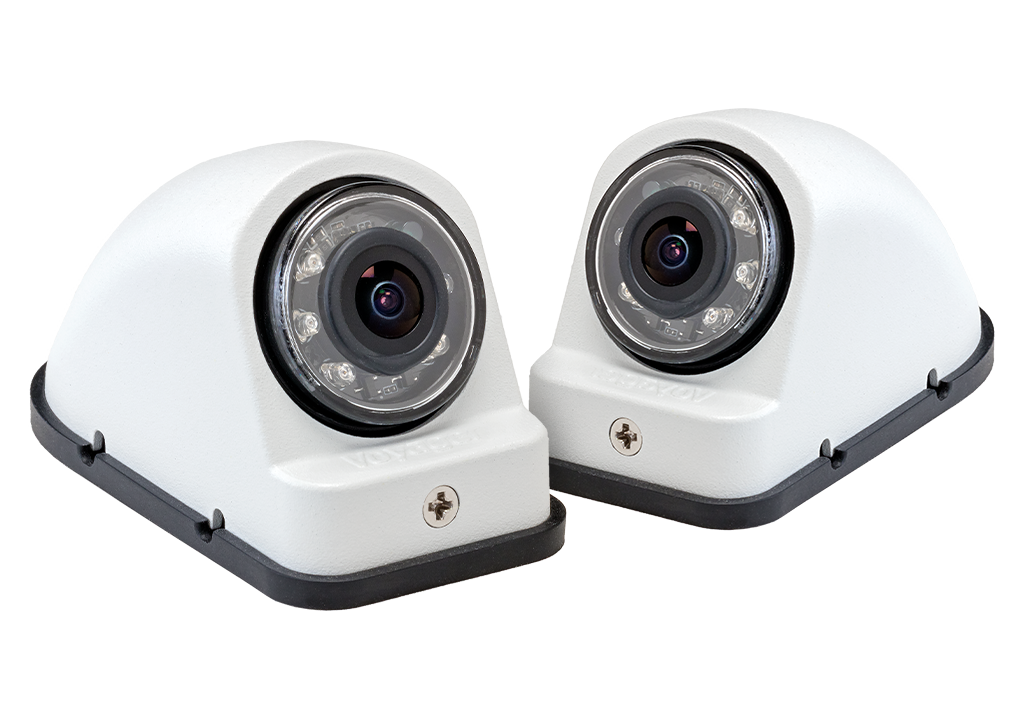

Left and Right Side Cameras

VCAHD142LWT / VCAHD142RWT

Outfit your vehicles with our high-definition cameras, delivering top-notch performance with advanced color optics, IR low-light assist for clear visibility, and resistance to the elements with impressive water and corrosion resistance.

Learn More
Learn More

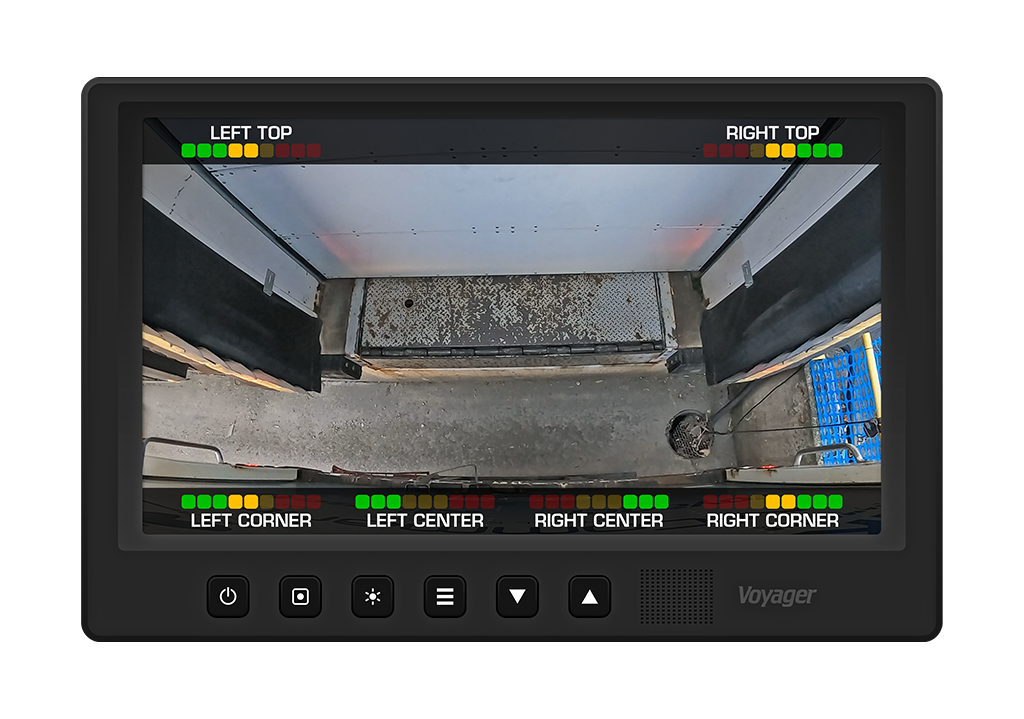

Rear Four-Sensor System

CVPS192

Upgrade vehicle safety with our Rear Four-Sensor System. Engineered for the long road ahead, the four bumper/body mount sensors deliver comprehensive alerts and proximity warnings through monitor speakers and on-screen display overlays.

Learn More
Learn More

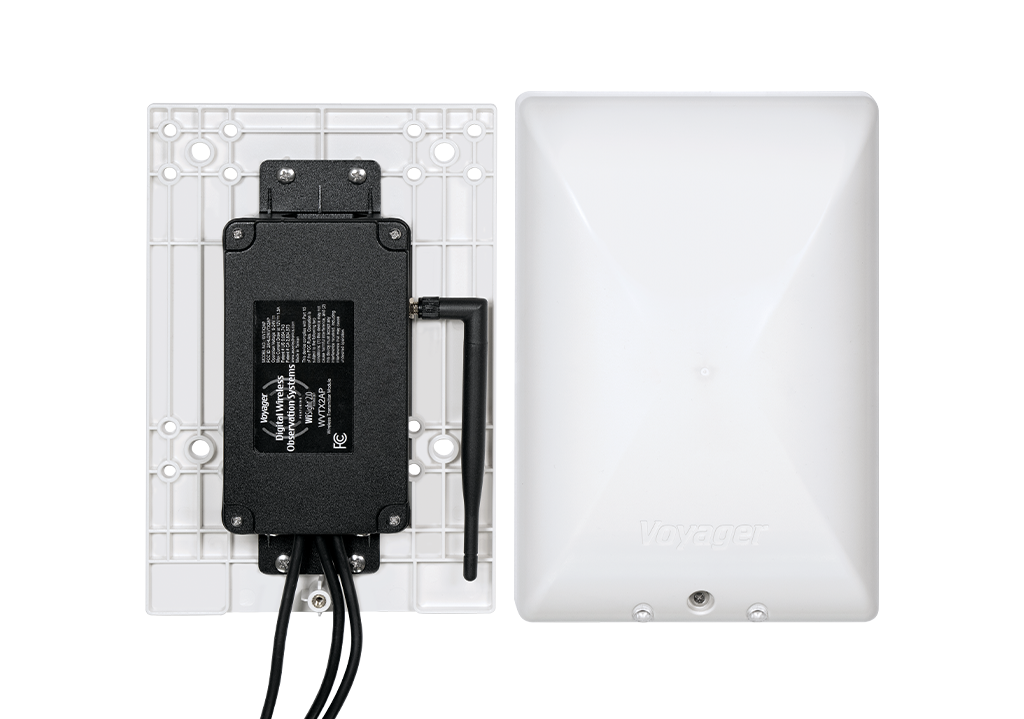

Digital Wireless Transmitter

WVTX2AP

Utilizing proprietary WiSight 2.0 Technology with auto-pairing, our Wireless Transmitter offers seamless integration and long-distance transmit/receiving capability. Housed in an aluminum waterproof enclosure and supporting up to 4 WiSight 2.0 wireless cameras, it is a reliable and durable choice for wireless camera systems.

*Best paired with the WVRX2AP Receiver and the WVSXM70 Monitor.

Learn More
Learn More

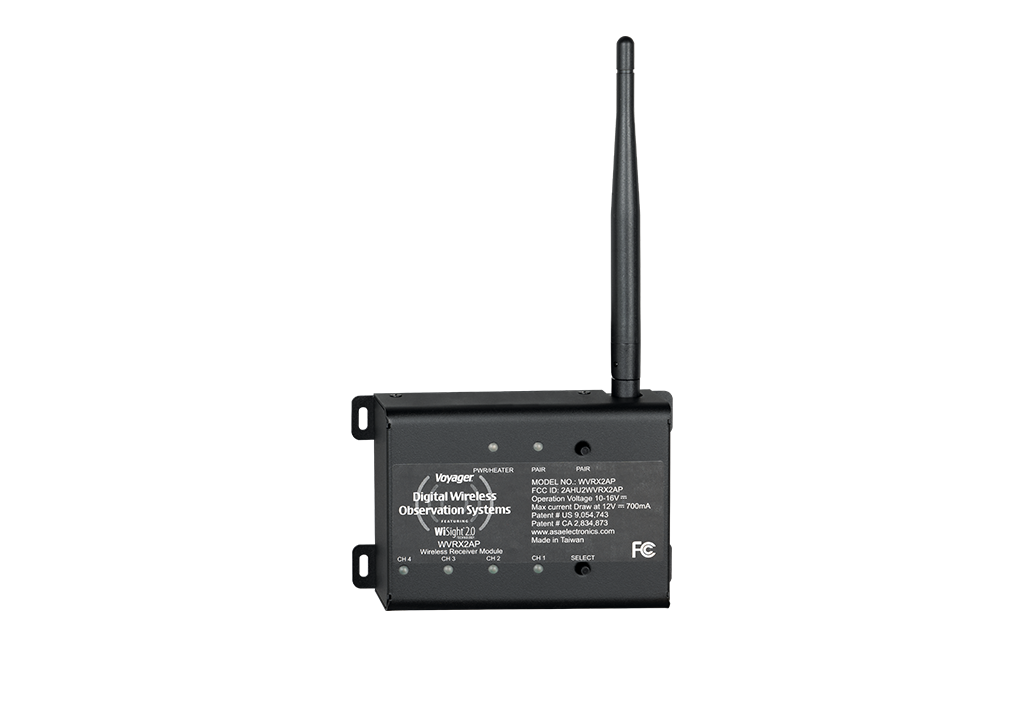

Digital Wireless Receiver

WVRX2AP

Unlock the future of wireless observation with our Digital Wireless Receiver. Powered by WiSight 2.0 Technology, it boasts seamless integration with auto pairing and long-distance transmit/receiving capability. It is a reliable and durable choice for wireless camera systems, supporting up to 4 WiSight 2.0 wireless cameras and housed in a robust metal casing.

*Best paired with the WVTX2AP Transmitter and the WVSXM70 Monitor.

Learn More
Learn More

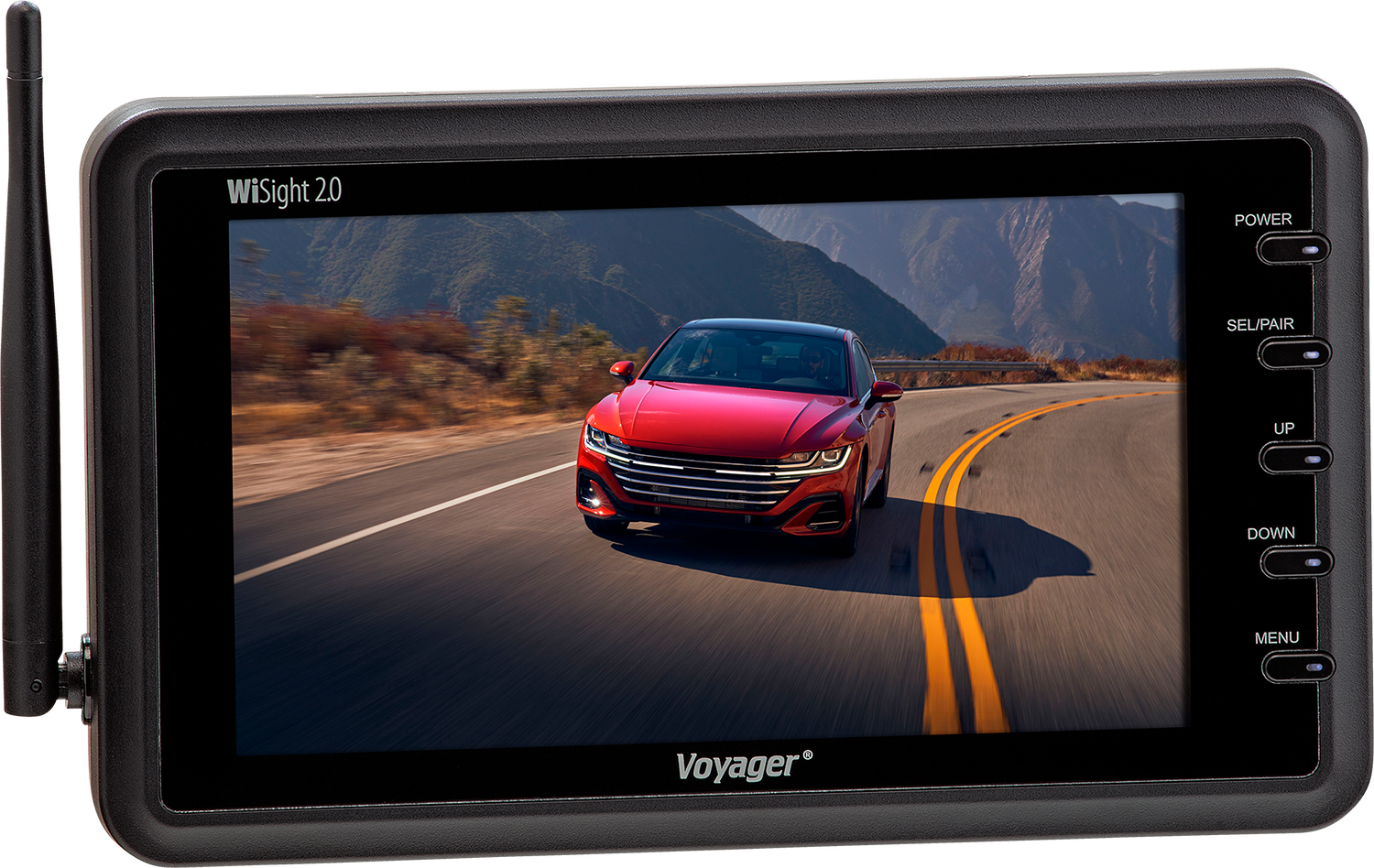

WVSXM70 with red car displayed.

Digital Wireless 7" Monitor

WVSXM70

Designed for seamless integration, our robust Wireless 7″ Display Monitor offers auto-pairing capability, supports up to four wireless cameras, and transmits/receives signal through and around objects up to 60 feet away, ensuring reliable coverage. Packed with features like a customized display, a built-in speaker, a suction cup mount, and a 12V DC plug, this monitor delivers above and beyond for the journey ahead.

*Best paired with the WVTX2AP Transmitter and the WVRX2AP Receiver.

Learn More
Learn More

Get in Touch

Jaren Weldy

National Accounts
Manager

(574) 350-4301 jweldy@asaelectronics.com
Email Me
Text Me

Dave Gordon

National Accounts
Manager

(574) 849-9935

dgordon@asaelectronics.com

Email Me
Text Me

Joe Camacho

Vice President
Commercial Divisions

(574) 206-6863

jcamacho@asaelectronics.com

Email Me
Text Me

Get in Touch

Jaren Weldy

National Accounts
Manager

(574) 350-4301

jweldy@asaelectronics.com

Email Me
Text Me

Dave Gordon

National Accounts
Manager

(574) 849-9935

dgordon@asaelectronics.com

Email Me
Text Me

Joe Camacho

Vice President
Commercial Divisions

(574) 206-6863

jcamacho@asaelectronics.com

Email Me
Text Me

stay up to date

Sign up to receive the latest updates from Voyager.

© Copyright Voyager. All Rights Reserved. | Privacy Policy

VCAHD142RWT / VCAHD142LWT

High-Definition Side Cameras

  • High-performance color optics
  • CMOS technology
  • Waterproof (IP69K)
  • IR low-light assist
  • Corrosion resistant (ASTM-B117)

CVPS192

Rear Four-Sensor System

  • Proximity detection/warning system with four bumper/body mount sensors
  • Seamlessly integrates into any Voyager rear camera system
  • Easy-to-read, on-screen display overlays that do not obstruct camera view
  • Audio fed through monitor speaker
  • Engineered for commercial vehicle environments
  • Compatible with JENSEN® touchscreen stereo (with camera input)
  • Compatible cameras: VCAHD140i, VCMS20, VCMS20B, VCMS17, VCMS17B

WVTX2AP

Digital Wireless Transmitter

  • Proprietary WiSight 2.0 Technology with Auto-Pairing
  • Long-distance transmit/receiving capability
  • Supports up to 4 WiSight 2.0 wireless cameras with select button and triggers
  • GPIO accessory inputs and outputs
  • LED indicator lights
  • Aluminum waterproof enclosure with plastic protective housing

*Not compatible with first generation WiSight Technology products.

WVRX2AP

Digital Wireless Receiver

  • Proprietary WiSight 2.0 Technology with Auto-Pairing
  • Long-distance transmit/receiving capability
  • Supports up to 4 WiSight 2.0 wireless cameras with select button and triggers
  • GPIO accessory inputs and outputs
  • LED indicator lights
  • Metal housing with AMPS mounting pattern

*Not compatible with first generation WiSight Technology products.

WVSXM70

Digital Wireless 7" Monitor

  • 7-inch display
  • Supports up to four wireless cameras simultaneously (WVSXC150 or WVSXC160)*
  • Auto-pairing capability allows monitor to be paired with any of the wireless cameras with the touch of a button
  • Strong signal transmits through and around objects up to 60 feet away
  • Supports normal and mirrored camera image
  • Supports Single, Split, and Quadview viewing options
  • Built-in speaker
  • Suction cup mount and 12V DC plug included

*Not compatible with first-generation WiSight Technology cameras.

VBSD32

  • Blind spot detection system
  • Two side-body mount sensors
  • Radar based waterproof sensors
  • Provides warning lights while sensor detects vehicle in blind zone with audible beep warning while turn signal is activated
  • 1T2R antenna technology detects the vehicle in blind zone from both directions (vehicle approaching or passing the target vehicle)
  • Self diagnostic mode
  • Rear Cross Traffic Alert (RCTA) System – the sensors monitor the target object in the monitored area. System will give out a beep alert for potential risk while vehicle is in reverse mode

CVPS18

  • Proximity detection/warning system with four bumper/body-mount sensors
  • Four detection zones with progressive beep tone
  • Audio speaker/buzzer with High/Low/Off volume settings
  • Plastic bumper installation
  • Built-in sensor isolators for metal bumper application
  • Sensor sensitivity adjustment with rear step avoidance option
  • No calibration, no on-screen display

CVPS192

  • Proximity detection/warning system with four bumper/body mount sensors
  • Seamlessly integrates into any Voyager rear camera system
  • Easy-to-read, on-screen display overlays that do not obstruct camera view
  • Audio fed through monitor speaker
  • Engineered for commercial vehicle environments
  • Compatible with JENSEN® touchscreen stereo (with camera input)
  • Compatible cameras: VCAHD140i, VCMS20, VCMS20B, VCMS17, VCMS17B

WVOS541

Wireless camera system includes one WVOM541AP monitor, one WVCMS130AP rear camera, one suction cup monitor mount, and 12 volt DC accessory plug.

Monitor Features
  • Supports up to 4 wireless cameras
  • Auto-Pairing button instantly pairs (up to) 4 wireless cameras
  • WiSight digital signal transmits through and around objects up to 60 feet away
  • 5.6-inch color TFT LCD panel display with LED backlight
  • Built-in speaker
  • Suction cup mount and 12 volt DC plug included
  • 12 volt DC power
  • NTSC video signal compatible
  • 960 W x 234 H screen resolution
  • 100° H and 80° V viewing angles
  • 500 nit brightness
  • 250:1 contrast ratio
  • 4:3 aspect ratio
Camera Features
  • Rear wireless camera with WiSight technology
  • WiSight digital signal transmits through and around objects up to 60 feet away
  • High performance color optics
  • 1/3-inch CMOS sensor
  • Mirror image orientation
  • 380 TV line resolution
  • 0 Lux sensitivity
  • 122° diagonal, 91° horizontal, 65° vertical viewing angles
  • LEDs for low light assistance
  • Microphone
  • Waterproof

WVSXS70

The WVSXS70 single-camera system includes a 7-inch wireless LCD monitor, wireless rear camera, 12-volt accessory plug, suction cup monitor mount, non-corrosive camera mounting bracket, and stainless steel hardware.

WiSight® 2.0 technology digitally locks the camera to the monitor and blocks all outside signals.  This eliminates interference and noise typical of analog wireless systems and delivers a sharp, vivid picture of the vehicle’s surroundings to the monitor.

Monitor (WVSXM70) Features
  • Supports up to four (4) wireless cameras simultaneously
  • Auto-Pairing capability allows the monitor to be paired with any of the wireless cameras with the touch of a button
  • Strong signal transmits through and around objects up to 60 feet away
  • Bright 7” display
  • Supports normal and mirrored camera image
  • Supports single, split, and quad view camera views
  • Built-in speaker
  • Suction cup mount and 12V DC plug included
Camera (WVSXC150) Features
  • 12VDC power
  • High-performance color optics
  • CMOS sensor technology
  • IR LED Low-light assist
  • Waterproof
  • Integrated microphone
  • Wide viewing angle
  • Non-corrosive camera mounting bracket
  • Stainless steel hardware

WVSXP43

The WVSXP43 single-camera system includes a 4.3-inch wireless LCD monitor, one wireless rear camera, a 12-volt power cord, and a suction cup mount.

WiSight® 2.0 technology digitally locks the camera to the monitor and blocks all outside signals.  This eliminates interference and noise typical of analog wireless systems and delivers a sharp, vivid picture of the vehicle’s surroundings to the monitor.

Monitor (WVSXM43) Features
  • Supports up to four (4) wireless cameras simultaneously
  • Auto-Pairing capability allows the monitor to be paired with any of the wireless cameras with the touch of a button
  • Strong signal transmits through and around objects up to 60 feet away
  • Bright 4.3” display
  • Supports normal and mirrored camera image
  • Displays graphic overlay that shows real-time distance from objects
  • Built-in speaker
  • Suction cup mount and 12V DC plug included
Camera (WVSXC150) Features
  • 12VDC power
  • High-performance color optics
  • CMOS Sensor technology
  • IR LED Low-light assist
  • Waterproof
  • Integrated microphone
  • Wide viewing angle

WVSXS43

The WVSXS43 single-camera system includes a 4.3-inch wireless LCD monitor, wireless rear camera, 12-volt accessory plug, suction cup monitor mount, non-corrosive camera mounting bracket, and stainless-steel hardware.

WiSight® 2.0 technology digitally locks the camera to the monitor and blocks all outside signals. This eliminates interference and noise typical of analog wireless systems and delivers a sharp, vivid picture of the vehicle’s surroundings to the monitor.
Monitor (WVSXM43) Features
  • Supports up to four (4) wireless cameras simultaneously
  • Auto-Pairing capability allows the monitor to be paired with any of the wireless cameras with the touch of a button
  • Strong signal transmits through and around objects up to 60 feet away
  • Bright 4.3” display
  • Supports normal and mirrored camera image
  • Displays graphic overlay that shows the real-time distance from objects
  • Built-in speaker
  • Suction cup mount and 12V DC plug included
Camera (WVSXC160) Features
  • 12VDC power
  • High-performance color optics
  • CMOS Sensor technology
  • IR LED Low-light assist
  • Waterproof
  • Integrated microphone
  • Wide viewing angle
  • Non-corrosive camera mounting bracket
  • Stainless steel hardware

DVR8200

  • Mobile digital video recorder
  • 8-channel real time video monitoring and recording
  • Compatible with any Voyager camera
  • Compatible with AHD cameras
  • Continuous recording as well as event recording (Sensor, speed, ignition off)
  • GPS support for map syncing with Google (GPS antenna included)
  • Multitasking function supports live camera monitoring, recording, play, and backing up footage
  • 3 wire power system
  • 2.5” 256GB SATA SSD Device for continuous recording
  • 32GB SD Card for event recording (impact & alarm)
  • SSD device lock key
  • LED diagnostic indicators
  • 3-axis G-sensor
  • IR remote control
  • Backup USB2 .0

VCMS155/B

  • Multi-use camera
  • Available in black (VCMS155B) or white (VCMS155)
  • High performance color optics
  • 1/4-inch CMOS sensor
  • Electronic Automatic iris
  • Selectable mirror or normal image orientation
  • 420 TV line resolution
  • 0 Lux sensitivity
  • 140° diagonal, 112° horizontal, 80° vertical angle of view
  • 10 LEDs for low light assistance
  • Microphone
  • Aluminum housing
  • Waterproof
  • Corrosion resistant
  • NTSC video signal compatible
  • 12 volt DC power

VCMS12FRWD

  • Forward facing camera
  • High performance color optics
  • 1/3-inch CMOS sensor
  • Electronic automatic iris
  • Mirror image orientation
  • 320 TV line resolution
  • 1.0 Lux sensitivity
  • 131° diagonal, 108° horizontal, 78° vertical angle of view
  • Plastic molded housing
  • Waterproof
  • NTSC video signal compatible
  • 12 volt DC power

VCAHD140ICV

  • Surface mount multi-use camera
  • Analog high definition
  • High performance color optics
  • 1/3-inch CMOS sensor
  • Electronic automatic iris
  • Mirror image orientation
  • 1200 TV line resolution
  • 0 Lux sensitivity
  • 146° diagonal, 129° horizontal, 86° vertical angle of view
  • IR low light assistance
  • Impact-resistant aluminum housing
  • Microphone
  • Waterproof
  • Corrosion resistant
  • NTSC video signal compatible
  • 12 volt DC power

VCAHD140LB

  • Surface mount light bar with camera
  • Single pass wire entry installation
  • Automotive exterior lighting-grade polycarbonate
  • FMVSS108 compliant
  • Analog high definition
  • High performance color optics
  • 1/3-inch CMOS sensor
  • Electronic automatic iris
  • Mirror image orientation
  • 1200 TV line resolution
  • 0 Lux sensitivity
  • 146° diagonal, 129° horizontal, 86° vertical angle of view
  • IR low light assistance
  • Impact-resistant aluminum housing
  • Microphone
  • Waterproof
  • Corrosion resistant
  • NTSC video signal compatible
  • 12 volt DC power

VCMS202/B

  • Multi-use camera
  • Available in black (VCMS202B) or white (VCMS202)
  • High performance color optics
  • 1/3-inch CMOS sensor
  • Electronic automatic iris
  • Selectable mirror or normal image orientation
  • 600 TV line resolution
  • 0 Lux sensitivity
  • 145° diagonal, 109° horizontal, 93° vertical angle of view
  • 19 LEDs for low light assistance
  • Aluminum housing
  • Microphone
  • Waterproof
  • Corrosion resistant
  • NTSC video signal compatible
  • 12 volt DC power

VCMS12

  • Side body camera
  • Available in left and right orientations in chrome (VCMS12LCM, VCMS12RCM), gray primer (VCMS12LGP, VCMS12RGP), and white (VCMS12LWT, VCMS12RWT)
  • High performance color optics
  • 1/3-inch CMOS sensor
  • Electronic automatic iris
  • Mirror image orientation
  • 320 TV line resolution
  • 1.0 Lux sensitivity
  • 131° diagonal, 108° horizontal, 78° vertical angle of view
  • Zinc alloy housing and injected plastic body
  • Waterproof
  • NTSC video signal compatible
  • 12 volt DC power

VCMS50

  • Side body camera
  • Available in left and right orientations in chrome (VCMS50LCM, VCMS50RCM), gray primer (VCMS50LGP, VCMS50RGP), and white (VCMS50LWT, VCMS50RWT)
  • Available in variable orientation in black (VCMS50TBLK)
  • High performance color optics
  • 1/4-inch CMOS sensor
  • Electronic automatic iris
  • Normal image orientation
  • 380 TV line resolution
  • .5 Lux sensitivity
  • 78° diagonal, 65° horizontal, 49° vertical angle of view
  • IR low light assistance
  • Aluminum housing and injected plastic body
  • Waterproof
  • Corrosion resistant
  • NTSC video signal compatible
  • 12 volt DC power

VCMS17B

  • Rear mount camera
  • High performance color optics
  • 1/3-inch CMOS sensor
  • Electronic automatic iris
  • Mirrored image orientation
  • 600 TV line resolution
  • 0 Lux sensitivity
  • 125° diagonal, 85° horizontal, 67° vertical angle of view
  • 12 LEDs for IR low light assistance
  • Microphone
  • Waterproof
  • Corrosion resistant
  • NTSC video signal compatible
  • 12 volt DC power

VOM74MM

Replacement Rearview Mirror Monitor

  • Supports 3 cameras with manual or triggered source selection
  • Rearview mirror replacement monitor
  • 7-inch wide format color TFT LCD display
  • On-Screen Display (OSD) for AV source, picture adjustment, and volume control
  • Manual and auto-dimming feature with screen saver mode
  • Mechanical buttons with white backlit illumination
  • Non-volatile memory
  • Built-in speaker
  • 12 volt DC power
  • NTSC and PAL video signal compatible
  • 800 W x 450 H screen resolution
  • 70° top, 50° bottom, 70° left, 70° right viewing angles
  • 400 nit brightness
  • 500:1 contrast ratio
  • Analog 16:9 aspect ratio

VOM719WP

Heavy Duty QuadView 7" Monitor

  • Supports 4 cameras with 6 triggers including Single image, Split-screen, and QuadView display modes
  • 7-inch digital wide format color TFT LCD display
  • DC auto source for switching triggers (turn signal compatible)
  • Manual day/night display brightness controls
  • Backlit control buttons
  • Heady duty waterproof construction
  • Rated and tested to withstand 4G continuous vibration
  • AMPS mounting provisions
  • Built-in speaker
  • Removable sun visor included
  • 12 volt DC power
  • NTSC and PAL video signal compatible
  • 800 W x 450 H screen resolution
  • 60° top, 70° bottom, 75° left, 75° right viewing angles
  • 500 nit brightness
  • 500:1 contrast ratio
  • 16:9 aspect ratio

VOM718

Observation 7" Monitor

  • Supports three wired cameras with manual (push button) or automatic (trigger) source selection
  • 7-inch wide format color LCD panel display with white LED backlight
  • On-Screen Display (OSD) for AV source, picture adjustment, and volume control
  • Day/night brightness modes
  • Rubber keypad with white backlit illumination
  • Auto-power on (stand by)
  • Non-volatile memory
  • Multiple mounting options (AMPS) compatible
  • Built-in speaker
  • Removable sun visor included
  • 12 volt DC power
  • NTSC and PAL video signal compatible
  • 480 W x 234 H screen resolution
  • 55° top, 65° bottom, 70° left, 70° right viewing angles
  • 450 nit brightness
  • 400:1 contrast ratio
  • Analog 16:9 aspect ratio

VOM43HD

  • Supports three wired cameras with manual (push button) or automatic (trigger) source selection
  • 4.3-inch color TFT LCD panel display with LED backlight
  • Anti-glare and anti-scratch protective lens
  • Display graphic overlays show distance from objects in real-time
  • On-Screen Display (OSD) for AV source, picture adjustment, and volume control
  • Heavy duty waterproof metal housing
  • Rubber keypad with white backlit illumination
  • Menu-selectable auto power on/off
  • Non-volatile memory
  • AMP mounting pattern
  • Built-in speaker
  • 12 volt DC power
  • NTSC and PAL video signal compatible
  • 480 W x 272 H screen resolution
  • 70° top, 70° bottom, 60° left, 60° right viewing angles
  • 500 nit brightness
  • 500:1 contrast ratio
  • 16:9 aspect ratio

WVOM541AP

  • Supports up to 4 wireless cameras
  • Auto-Pairing button instantly pairs (up to) 4 wireless cameras
  • WiSight digital signal transmits through and around objects up to 60 feet away
  • 5.6-inch color TFT LCD panel display with LED backlight
  • Built-in speaker
  • Suction cup mount and 12 volt DC plug included
  • 12 volt DC power
  • NTSC video signal compatible
  • 960 W x 234 H screen resolution
  • 100° H and 80° V viewing angles
  • 500 nit brightness
  • 250:1 contrast ratio
  • 4:3 aspect ratio

WVSXP70

The WVSXP70 single-camera system includes a 7-inch wireless LCD monitor, wireless rear camera, 12-volt accessory plug, and suction cup monitor mount.

WiSight® 2.0 technology digitally locks the camera to the monitor and blocks all outside signals.  This eliminates interference and noise typical of analog wireless systems and delivers a sharp, vivid picture of the vehicle’s surroundings to the monitor.

Monitor (WVSXM70) Features
  • Supports up to four (4) wireless cameras simultaneously
  • Auto-Pairing capability allows the monitor to be paired with any of the wireless cameras with the touch of a button
  • Strong signal transmits through and around objects up to 60 feet away
  • Bright 7” display
  • Supports normal and mirrored camera image
  • Supports single, split, and quad view camera views
  • Built-in speaker
  • Suction cup mount and 12V DC plug included
Camera (WVSXC160) Features
  • 12VDC power
  • High-performance color optics
  • CMOS Sensor technology
  • IR LED Low-light assist
  • Waterproof
  • Integrated microphone
  • Wide viewing angle

WVRXCAMTC

System includes WiSight receiver (WVRX1AP) and wireless camera (WVCMS130AP).

Receiver Features
  • Universal installation with AMPS mounting provisions
  • WiSight digital signal transmits through and around objects up to 60 feet away
  • Compatible with any Voyager wired monitor for instant WiSight signal capability
  • Adjustable antenna
  • LED power indicator
Camera Features
  • Rear wireless camera with WiSight technology
  • WiSight digital signal transmits through and around objects up to 60 feet away
  • High performance color optics
  • 1/3-inch CMOS sensor
  • Mirror image orientation
  • 380 TV line resolution
  • 0 Lux sensitivity
  • 122° diagonal, 91° horizontal, 65° vertical viewing angles
  • LEDs for low light assistance
  • Microphone
  • Waterproof

VAVS360A1

  • Auto-calibrate the images from four cameras to create a 360- degree image
  • Supports four vehicle configurations
    • Walk-in Van 354” L x 118” W
    • Bus 551” L x 118” W
    • Heavy Duty Vehicles 236” L x 354” W
    • Semi Trailer 630” L x 118” W
  • Left/Right/Rear trigger function to switch between viewing angles
  • Update software and vehicle image via USB
  • 1/3-inch high performance color optic cameras
  • Waterproof housing
  • Plastic camera housing with stainless steel mounting bracket and aluminum
  • Powder coated camera cover

VOS74MMCL3B

Wired camera system includes one VOM74MM mirror monitor, one VCMS140IB rear camera, one VCMS50RGP right side camera, one VCMS50LGP left side camera, and proprietary cabling.

Monitor Features
  • Supports 3 cameras with manual or triggered source selection
  • Rearview mirror replacement monitor
  • 7-inch wide format color TFT LCD display
  • On-Screen Display (OSD) for AV source, picture adjustment, and volume control
  • Manual and auto-dimming feature with screen saver mode
  • Mechanical buttons with white backlit illumination
  • Non-volatile memory
  • Built-in speaker
  • 12 volt DC power
  • NTSC and PAL video signal compatible
  • 800 W x 450 H screen resolution
  • 70° top, 50° bottom, 70° left, 70° right viewing angles
  • 400 nit brightness
  • 500:1 contrast ratio
  • Analog 16:9 aspect ratio
Rear Camera Features
  • Surface mount multi-use camera
  • High performance color optics
  • 1/4-inch CMOS sensor
  • Electronic automatic iris
  • Mirror image orientation
  • 400 TV line resolution
  • 0 Lux sensitivity
  • 150° diagonal, 120° horizontal, 90° vertical angle of view
  • IR low light assistance
  • Impact-resistant aluminum housing
  • Microphone
  • Waterproof
  • Corrosion resistant
  • NTSC video signal compatible
  • 12 volt DC power
Side Camera Features
  • High performance color optics
  • 1/4-inch CMOS sensor
  • Electronic automatic iris
  • Normal image orientation
  • 380 TV line resolution
  • .5 Lux sensitivity
  • 78° diagonal, 65° horizontal, 49° vertical angle of view
  • IR low light assistance
  • Aluminum housing and injected plastic body
  • Waterproof
  • Corrosion resistant
  • NTSC video signal compatible
  • 12 volt DC power

VOS74MMCL2B

Wired camera system includes one VOM74MM mirror monitor, one VCMS140IB rear camera, one VCMS50RGP right side camera, and proprietary cabling.

Monitor Features
  • Supports 3 cameras with manual or triggered source selection
  • Rearview mirror replacement monitor
  • 7-inch wide format color TFT LCD display
  • On-Screen Display (OSD) for AV source, picture adjustment, and volume control
  • Manual and auto-dimming feature with screen saver mode
  • Mechanical buttons with white backlit illumination
  • Non-volatile memory
  • Built-in speaker
  • 12 volt DC power
  • NTSC and PAL video signal compatible
  • 800 W x 450 H screen resolution
  • 70° top, 50° bottom, 70° left, 70° right viewing angles
  • 400 nit brightness
  • 500:1 contrast ratio
  • Analog 16:9 aspect ratio
Rear Camera Features
  • Surface mount multi-use camera
  • High performance color optics
  • 1/4-inch CMOS sensor
  • Electronic automatic iris
  • Mirror image orientation
  • 400 TV line resolution
  • 0 Lux sensitivity
  • 150° diagonal, 120° horizontal, 90° vertical angle of view
  • IR low light assistance
  • Impact-resistant aluminum housing
  • Microphone
  • Waterproof
  • Corrosion resistant
  • NTSC video signal compatible
  • 12 volt DC power
Side Camera Features
  • High performance color optics
  • 1/4-inch CMOS sensor
  • Electronic automatic iris
  • Normal image orientation
  • 380 TV line resolution
  • .5 Lux sensitivity
  • 78° diagonal, 65° horizontal, 49° vertical angle of view
  • IR low light assistance
  • Aluminum housing and injected plastic body
  • Waterproof
  • Corrosion resistant
  • NTSC video signal compatible
  • 12 volt DC power

VOS74MMCL1B

Wired camera system includes one VOM74MM mirror monitor, one VCMS140IB rear camera, and proprietary cabling.

Monitor Features
  • Supports 3 cameras with manual or triggered source selection
  • Rearview mirror replacement monitor
  • 7-inch wide format color TFT LCD display
  • On-Screen Display (OSD) for AV source, picture adjustment, and volume control
  • Manual and auto-dimming feature with screen saver mode
  • Mechanical buttons with white backlit illumination
  • Non-volatile memory
  • Built-in speaker
  • 12 volt DC power
  • NTSC and PAL video signal compatible
  • 800 W x 450 H screen resolution
  • 70° top, 50° bottom, 70° left, 70° right viewing angles
  • 400 nit brightness
  • 500:1 contrast ratio
  • Analog 16:9 aspect ratio





Rear Camera Features
  • Surface mount multi-use camera
  • High performance color optics
  • 1/4-inch CMOS sensor
  • Electronic automatic iris
  • Mirror image orientation
  • 400 TV line resolution
  • 0 Lux sensitivity
  • 150° diagonal, 120° horizontal, 90° vertical angle of view
  • IR low light assistance
  • Impact-resistant aluminum housing
  • Microphone
  • Waterproof
  • Corrosion resistant
  • NTSC video signal compatible
  • 12 volt DC power

VOS719WPLD3B

Wired camera system includes one VOM719WP monitor, one VCMS17B rear camera, one VCMS50RGP right side camera, one VCMS50LGP left side camera, one VOSHD4MNT monitor mount, and proprietary cabling.

Monitor Features
  • Supports 4 cameras with 6 triggers including Single image, Split-screen, and QuadView display modes
  • 7-inch digital wide format color TFT LCD display
  • DC auto source for switching triggers (turn signal compatible)
  • Manual day/night display brightness controls
  • Backlit control buttons
  • Heady duty waterproof construction
  • Rated and tested to withstand 4G continuous vibration
  • AMPS mounting provisions
  • Built-in speaker
  • Removable sun visor included
  • 12 volt DC power
  • NTSC and PAL video signal compatible
  • 800 W x 450 H screen resolution
  • 60° top, 70° bottom, 75° left, 75° right viewing angles
  • 500 nit brightness
  • 500:1 contrast ratio
  • 16:9 aspect ratio
Rear Camera Features
  • Rear mount camera
  • High performance color optics
  • 1/3-inch CMOS sensor
  • Electronic automatic iris
  • Mirrored image orientation
  • 600 TV line resolution
  • 0 Lux sensitivity
  • 125° diagonal, 85° horizontal, 67° vertical angle of view
  • 12 LEDs for IR low light assistance
  • Microphone
  • Waterproof
  • Corrosion resistant
  • NTSC video signal compatible
  • 12 volt DC power
Side Camera Features
  • High performance color optics
  • 1/4-inch CMOS sensor
  • Electronic automatic iris
  • Normal image orientation
  • 380 TV line resolution
  • .5 Lux sensitivity
  • 78° diagonal, 65° horizontal, 49° vertical angle of view
  • IR low light assistance
  • Aluminum housing and injected plastic body
  • Waterproof
  • Corrosion resistant
  • NTSC video signal compatible
  • 12 volt DC power

VOS719WPLD2B

Wired camera system includes one VOM719WP monitor, one VCMS17B rear camera, one VCMS50RGP right side camera, one VOSHD4MNT monitor mount, and proprietary cabling.

Monitor Features
  • Supports 4 cameras with 6 triggers including Single image, Split-screen, and QuadView display modes
  • 7-inch digital wide format color TFT LCD display
  • DC auto source for switching triggers (turn signal compatible)
  • Manual day/night display brightness controls
  • Backlit control buttons
  • Heady duty waterproof construction
  • Rated and tested to withstand 4G continuous vibration
  • AMPS mounting provisions
  • Built-in speaker
  • Removable sun visor included
  • 12 volt DC power
  • NTSC and PAL video signal compatible
  • 800 W x 450 H screen resolution
  • 60° top, 70° bottom, 75° left, 75° right viewing angles
  • 500 nit brightness
  • 500:1 contrast ratio
  • 16:9 aspect ratio
Rear Camera Features
  • Rear mount camera
  • High performance color optics
  • 1/3-inch CMOS sensor
  • Electronic automatic iris
  • Mirrored image orientation
  • 600 TV line resolution
  • 0 Lux sensitivity
  • 125° diagonal, 85° horizontal, 67° vertical angle of view
  • 12 LEDs for IR low light assistance
  • Microphone
  • Waterproof
  • Corrosion resistant
  • NTSC video signal compatible
  • 12 volt DC power
Side Camera Features
  • High performance color optics
  • 1/4-inch CMOS sensor
  • Electronic automatic iris
  • Normal image orientation
  • 380 TV line resolution
  • .5 Lux sensitivity
  • 78° diagonal, 65° horizontal, 49° vertical angle of view
  • IR low light assistance
  • Aluminum housing and injected plastic body
  • Waterproof
  • Corrosion resistant
  • NTSC video signal compatible
  • 12 volt DC power

VOS719WPLD1B

Wired camera system includes one VOM719WP monitor, one VCMS17B rear camera, one VOSHD4MNT monitor mount, and proprietary cabling.

Monitor Features
  • Supports 4 cameras with 6 triggers including Single image, Split-screen, and QuadView display modes
  • 7-inch digital wide format color TFT LCD display
  • DC auto source for switching triggers (turn signal compatible)
  • Manual day/night display brightness controls
  • Backlit control buttons
  • Heady duty waterproof construction
  • Rated and tested to withstand 4G continuous vibration
  • AMPS mounting provisions
  • Built-in speaker
  • Removable sun visor included
  • 12 volt DC power
  • NTSC and PAL video signal compatible
  • 800 W x 450 H screen resolution
  • 60° top, 70° bottom, 75° left, 75° right viewing angles
  • 500 nit brightness
  • 500:1 contrast ratio
  • 16:9 aspect ratio
Rear Camera Features
  • Rear mount camera
  • High performance color optics
  • 1/3-inch CMOS sensor
  • Electronic automatic iris
  • Mirrored image orientation
  • 600 TV line resolution
  • 0 Lux sensitivity
  • 125° diagonal, 85° horizontal, 67° vertical angle of view
  • 12 LEDs for IR low light assistance
  • Microphone
  • Waterproof
  • Corrosion resistant
  • NTSC video signal compatible
  • 12 volt DC power

Wired Systems

Wireless Systems

Sensor Systems

RV Systems

Accessories

Components

Home

Shop

Support

Contact

Careers
